Diesel Fuel Gauges

Option 2

Our most popular level sensor for use in diesel fuel tanks is designed to fit into a threaded bush in the bottom of the tank.

The thread is ¼ BSP. We would suggest that this is isolated with a shut off valve to assist removal should this be necessary. These units are normally calibrated by the customer after filling the tank. 35mm clearance is required to screw the unit into the tank. (The connector plug unplugs).

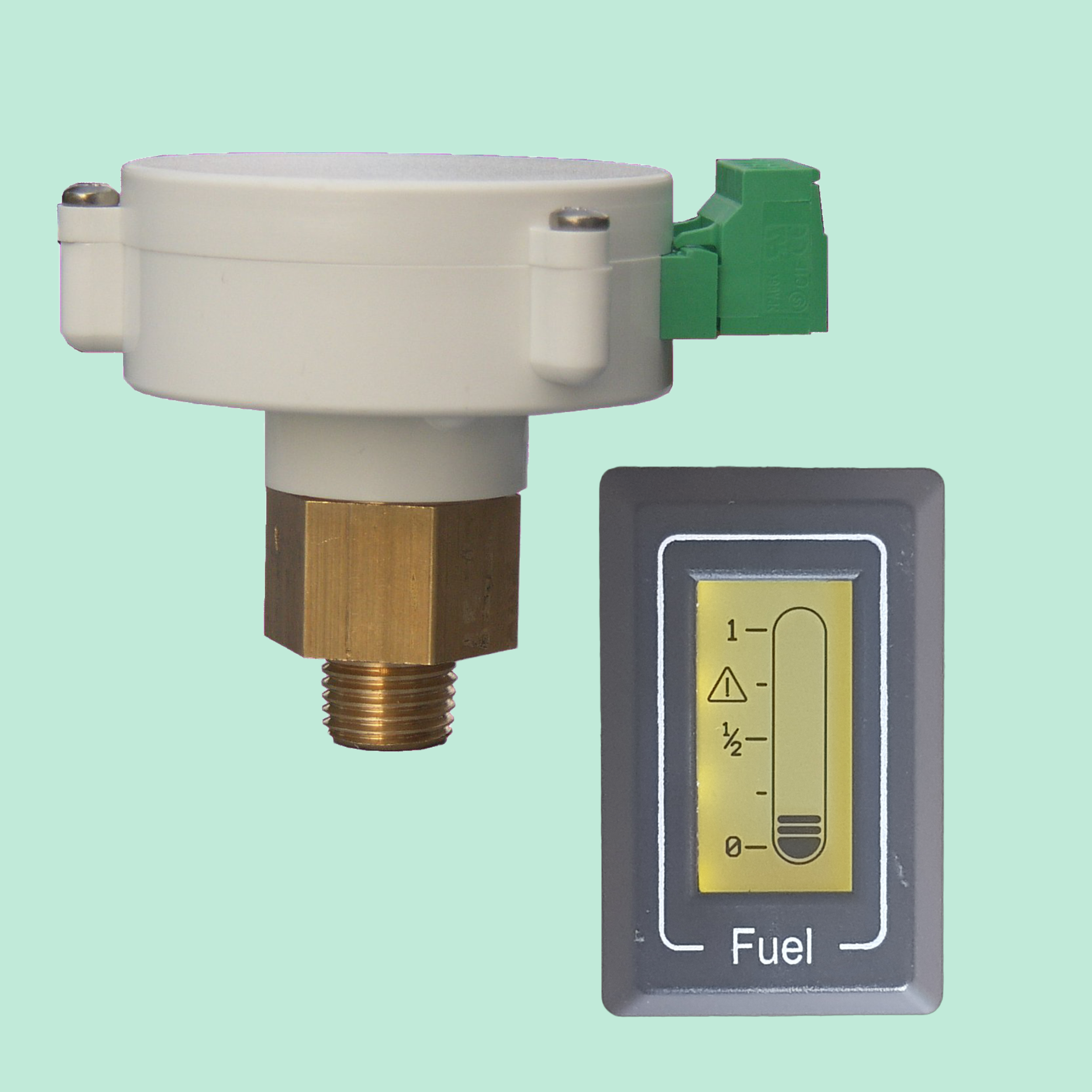

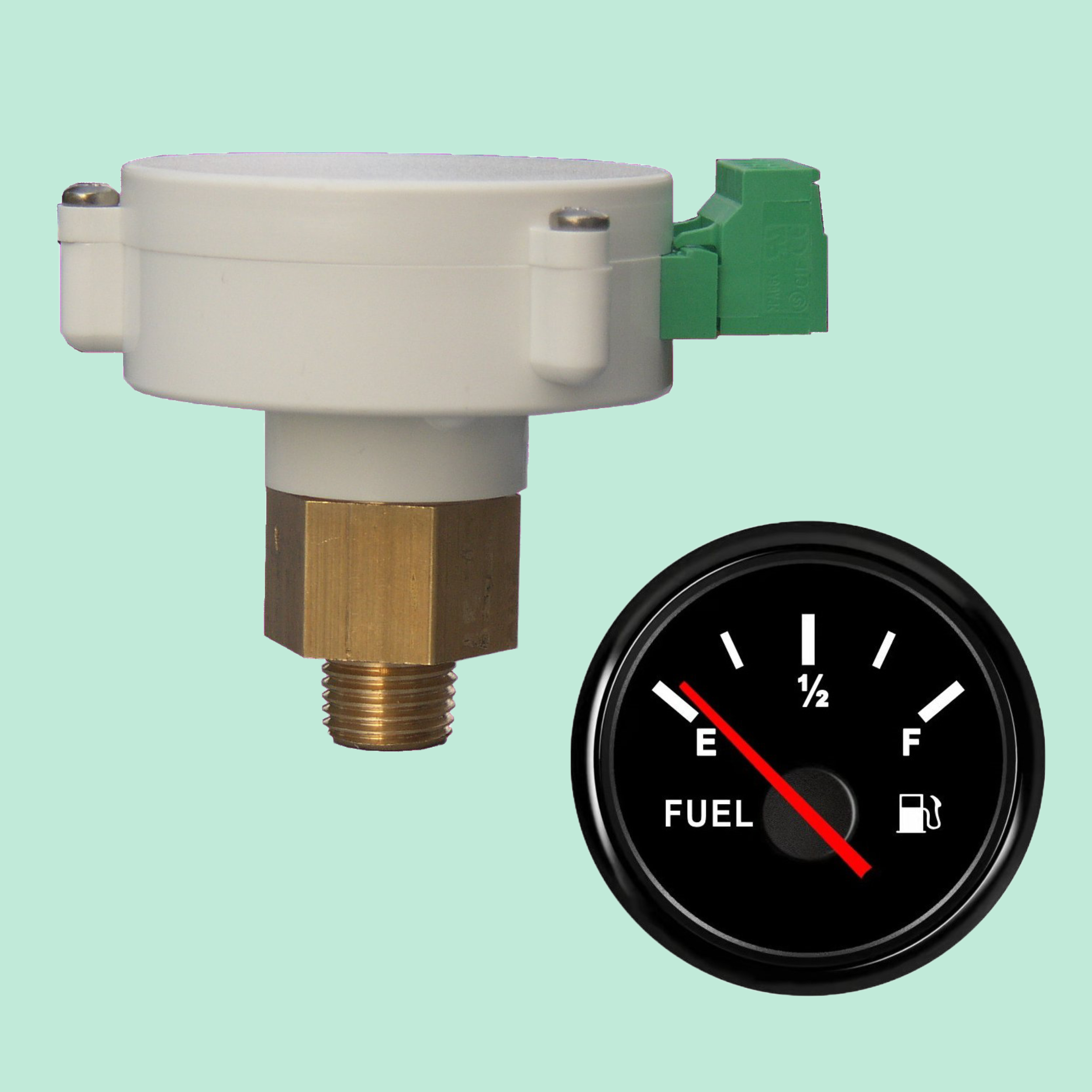

 The level gauge indicates the liquid level in the tank as it empties. The gauge can be positioned anywhere in the boat as required and the Graphics gauge has back lighting to enable it to be read easily in the dark. For those who prefer a more traditional look, we now offer our CLASSIC range of gauges.

This fuel level sensor will operate on either 12v or 24v D.C. v

We can supply a 0-10V Sender only option for connection to panels.

These products meet the requirements of the Boat Safety Scheme for diesel fuel when installed according to the instructions provided
